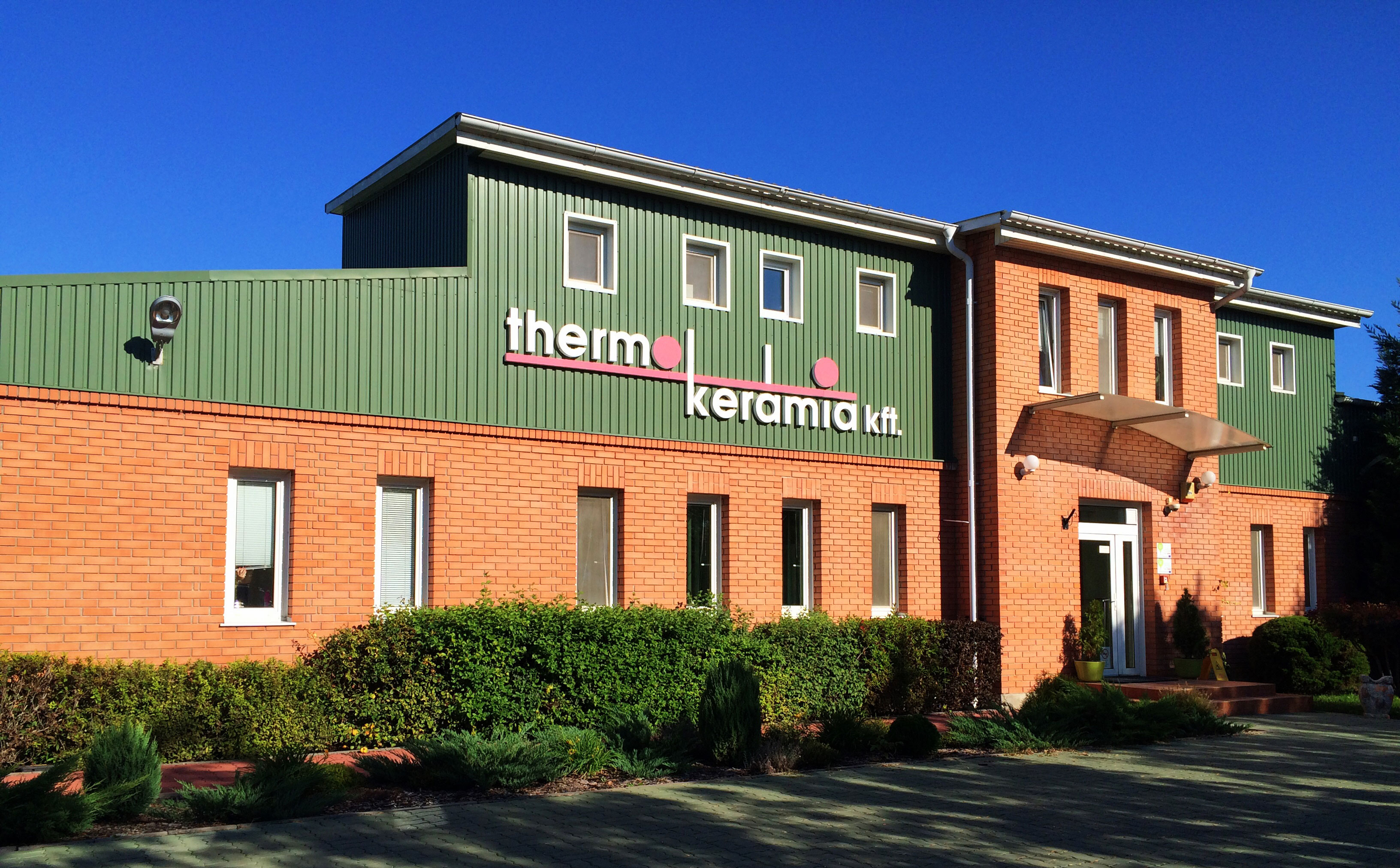

Welcome to Thermokerámia!

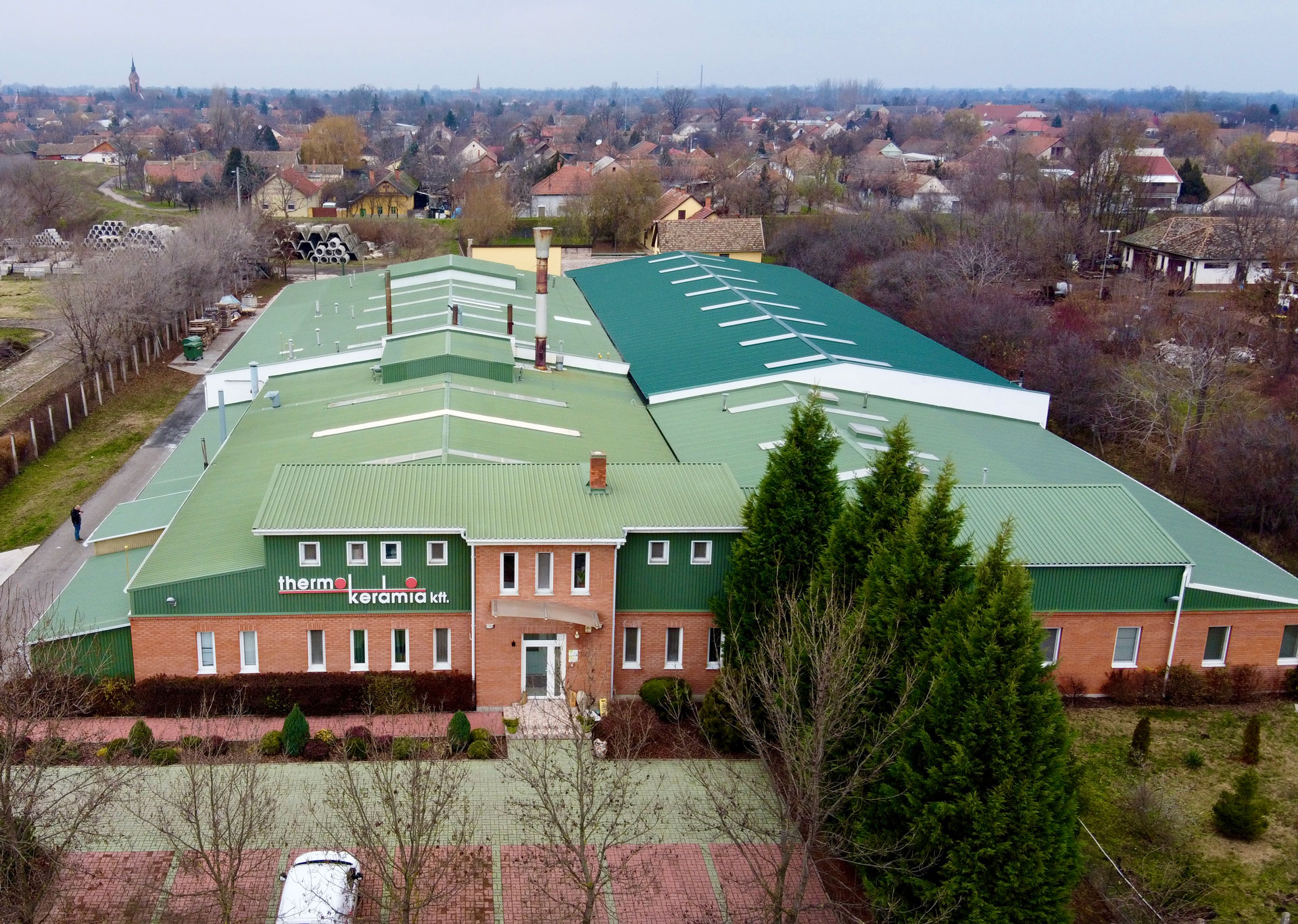

We are a family business operating since 1990. From a small workshop employing just 2 people, we have grown into a company giving employment to 30 staff, producing across more than 3,000 square metres.

From the very beginning, we have continuously developed and refined our primary ceramic manufacturing technology — low-pressure injection moulding — resulting in the annual production of nearly 500,000 technical ceramic products that meet exacting dimensional and quality standards to the full satisfaction of our customers. about_intro_3

Czimmer Imre, Managing Director
Thermokerámia

Our Proprietary Materials

Material Table (Low-Pressure Injection Moulding)

QUALITY THERMOMULL
04
THERMOMULL
SM 60
THERMALU 11 THERMALU 12.8 TX 15.1 THERMOCOR
24.3
IEC 672-1:1995 C 530 C 530 C 530 C 786 C 512
Mineralogical composition Mullite 85% Mullite 95% Mullite +
Corundum
Corundum Corundum 92% Cordierite +
Mullite
Moulding Injection
Moulding
Injection
Moulding
Injection
Moulding
Injection
Moulding
Injection
Moulding
Injection
Moulding
Chemical composition
SiO2 % 38 26 14 0,02 3,4 54,0
Al2O3 % 60 72 85 min. 99,7 92 31,1
Fe2O3 % 0,5 0,3 0,2 0,03 0,2 1,3
TiO2 % 0,1 0,2 0,1 x 0,1 0,9
CaO % 0,1 0,3 0,2 x 2,4 0,5
MgO % 0,1 0,3 0,05 x 1,5 10,7
K2O % 0,4 0,5 0,1 x 0,2 1,1
Na2O % 0,2 0,1 0,3 0,10 - 0,15
x
0,1 0,1
Thermal expansion (20 - 1000 °C) 10-6/K 4,9 max. 5,5 5,4—5,7 8,2 7,8 2,0—2,5
Refractoriness under load t05 °C min. 1450 min. 1500 min. 1600
Bending strength 20°C N/mm2 45 40 40 80 - 90 210 - 270 10 - 12
Bulk density g/cm3 2,0—2,1 2,2 - 2,3 2,35 - 2,45 3,15 - 3,20 3,5 2,0—2,1
Apparent porosity % 28 - 32 25 - 30 28 - 32 18 - 20 0 18 - 20
Maximal application temperature °C 1300 1500 1550 1550 1400 1250

Material Table

QUALITY THERMALU
11G76
THERMOCOR 19 THERMALU 17 THERMALU 21P THERMALU
26PP
THERMALU
26E
IEC 672-1:1995 C 530 C 512 C 530 C 799 C 530 C 530
Mineralogical composition Mullite +
Corundum
Cordierite +
Mullite
Mullite +
Corundum
Corundum
99,7%
Mullite +
Corundum
Mullite +
Corundum
Moulding Casting* Casting* Dry pressing Dry Pressing Plastic Pressing Extrusion
Chemical composition
SiO2 % 22,1 47,5 17,5 0,06 16,5 16,5
Al2O3 % 76,7 40,5 80,7 99,7 82,5 82,5
Fe2O3 % 0,4 1,0 0,3 0,02 0,35 0,35
TiO2 % 0,3 0,2 0,4 0,2 0,2
CaO % 0,1 0,3 0,2 0,04 0,1 0,1
MgO % 0,1 9,1 0,2 0,09 0,05 0,05
K2O % 0,2 1,1 0,1 0,05 0,05
Na2O % 0,2 0,1 0,3 0,05 0,2 0,2
Thermal expansion (20 - 1000 °C) 10-6/K max. 7,0 max. 3,0 6,5 7,8—8,2 max. 6,0 max. 6,0
Refractoriness under load t05 °C min. 1500 min. 1340 min. 1500 min. 1500 min. 1500
Bending strength 20°C N/mm2 12 12 - 16 30 300 - 350 40 - 50 35 - 40
Bulk density g/cm3 2,4 1,75 - 1,9 2,50 3,88 - 3,91 2,5 - 2,6 2,4 - 2,5
Apparent porosity % 31 - 33 34 - 36 23 - 26 0 22 - 24 24 - 26
Maximal application temperature °C max. 1450 1250—1330 max. 1500 1600 (1750) 1550 1550

Management

News & Events

View Our News

Key Figures
& Values

0 types

Manufactured

product types

0 pieces

Production capacity

per year

0 tonnes

Delivered

plaster moulds

News

& Highlights


Continuous Innovation in Manufacturing

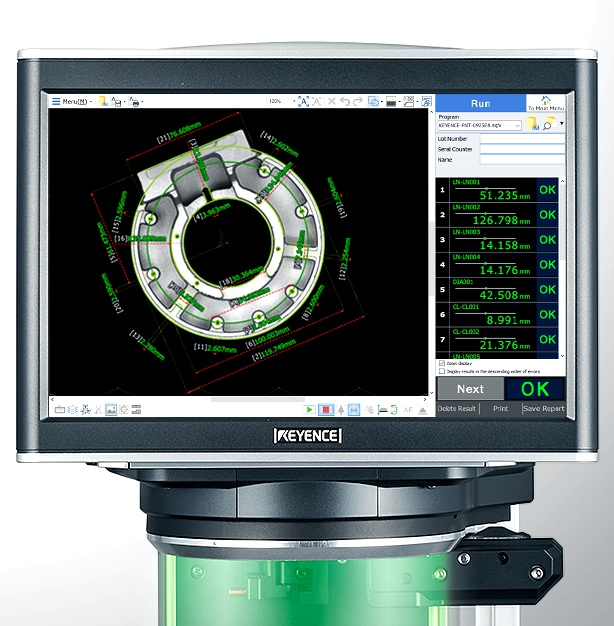

At the end of 2025, we invested in an optical measuring device alongside our existing 3D scanner to achieve even faster and, in many cases, more accurate dimensional checks, thereby enhancing manufacturing and product quality.


Sustainable Manufacturing, Environmental Awareness

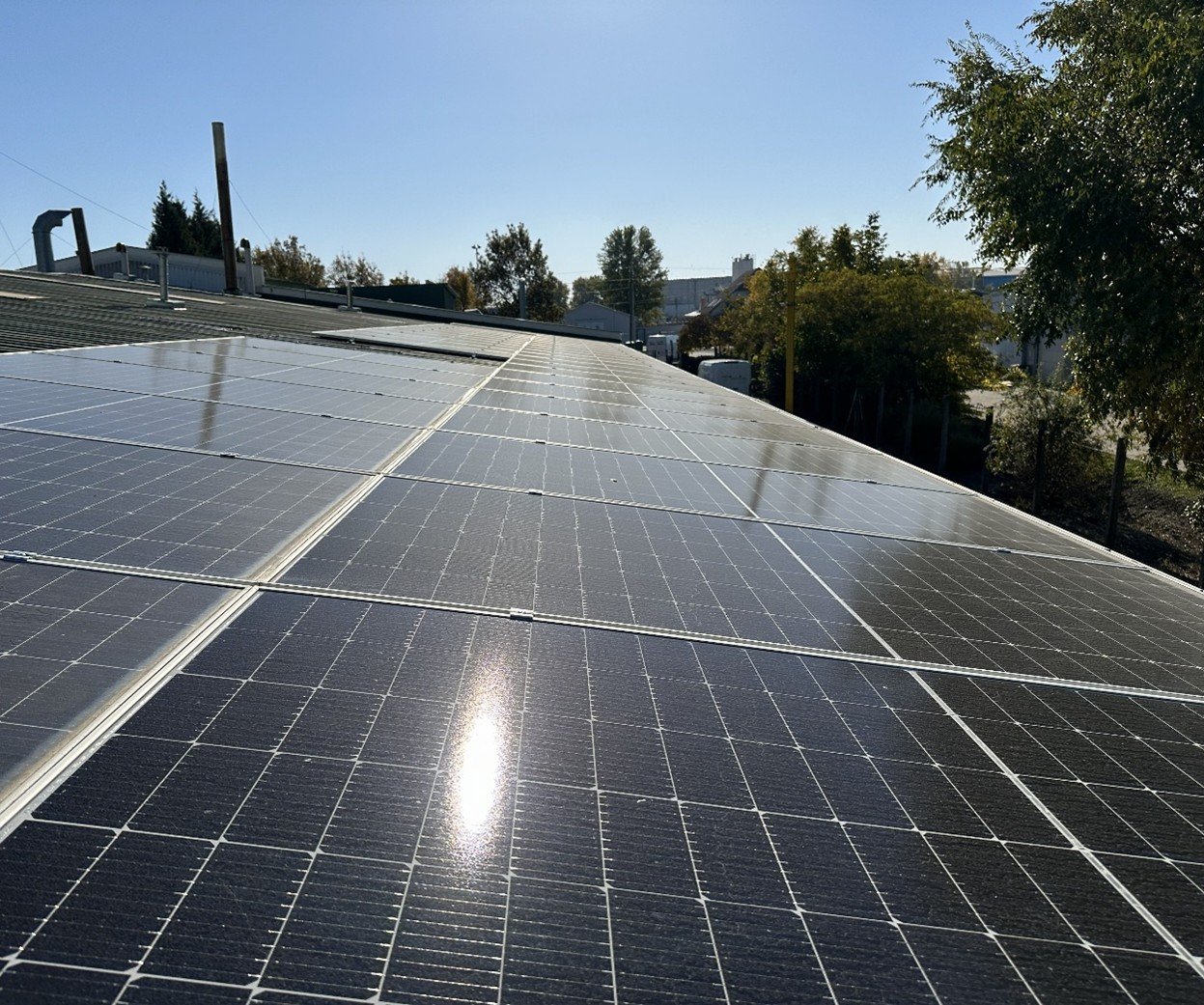

According to plans, we will soon expand our solar panel park in the spirit of sustainability.


Dog-Friendly Workplace

As soon as the weather improves, we will proudly hand over the renovated, expanded dog kennel to our employees in the park adjacent to the office building, making it a dog-friendly workplace.
