Valuable insights can be gained here to further develop business strategy. Whether it's about energy efficiency, electrotechnical applications, or the field of medicine - intelligent answers can be found regarding the challenges of tomorrow.
At the 2024 event, nearly 13,000 participants and 466 exhibitors showcased their products and services over 33,000 m2.

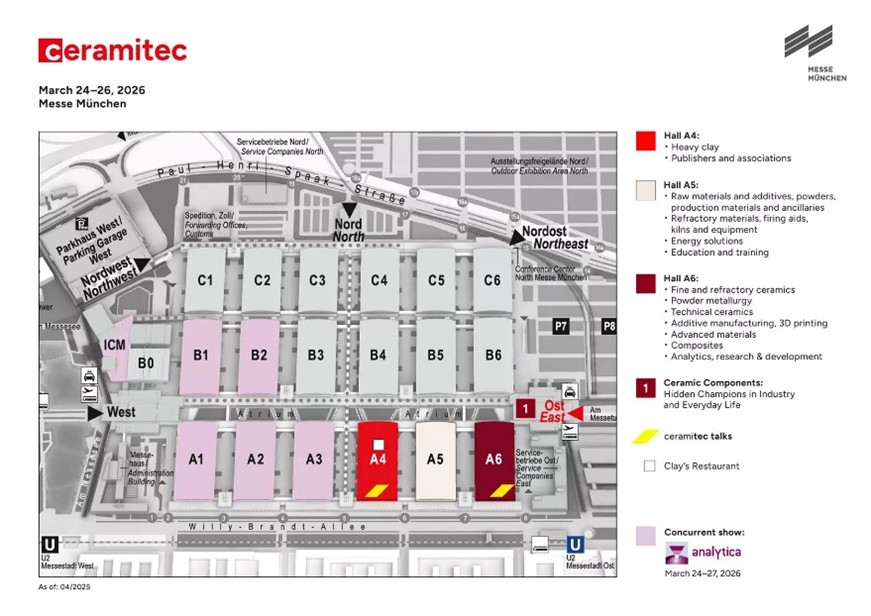

Theme, hall layout:
The ceramitec exhibition showcases the full spectrum of the ceramics industry. In addition to coarse, fine, and refractory ceramics, as well as raw materials, technical ceramics and powder metallurgy are also represented with separate exhibition areas.
Ceramitec offers an opportunity to highlight the diversity of the ceramics industry. Here, anyone can gain a comprehensive view of the entire market, find the right business partner, acquire new customers, and gain fresh impulses for their business.
Please contact us either through the contact form on our website or by email. Describe your requirements and/or send a drawing or sketch of the desired product or component. Our team will respond to your enquiry promptly.
Thermokerámia Kft.'s key strengths include speed, flexibility, and agility — always with comprehensive customer service firmly in focus.
Contact persons by role:
-Central e-mail
-Account Manager
-Plant Manager
-Technical Manager
-Designer
-Managing Director
Thermokerámia Kft. primarily manufactures bespoke products. We produce items with the shape, dimensions, and properties best suited to each customer's requirements.
Please contact us. If possible, send a drawing, sketch, or model, or describe the product or component to be manufactured along with its application conditions. Our design engineers will prepare technical drawings and models, and after finalising the details (shape, dimensions, and tolerances), we will provide a fixed price depending on the order quantity. We will propose from our own innovative materials the one most suited to your specific application. You are also free to select from our material data table, which contains all key information.
It is to our mutual advantage to receive the most accurate description of operating conditions (temperature profile, atmosphere, mechanical load, industry sector) whenever possible, so that we can develop the most suitable product and manufacture it in the most cost-effective manner.
Our philosophy is that products designed for you or in collaboration with you are manufactured exclusively for you and your company, and are not disclosed to any third party.
We also have our own standard product range from which you are welcome to select.
Industries with which we are directly or indirectly involved. We have been building and applying our professional expertise for nearly 37 years.
| Material Code | THERMALU THA 11 |
|---|---|
| Application Areas & Industries | fine ceramics industry, e.g. porcelain, stoneware, earthenware, bone china; technical ceramics, e.g. electroceramics, structural ceramics, powder metallurgy, dental ceramics |
| Maximum Application Temperature | max. 1550°C (depends on product shape, load, atmosphere, and corrosion conditions) |
| Product Types | kiln furniture, e.g. setters, spacers, setter covers, slabs, cup-shaping rings, ferrite-firing rings, fixing elements, ceramic screws, shelf system components; thermal components: fixing elements for thermal insulation, furnace parts; electrotechnical components: high-temperature insulators, heating element holders |
| Key Properties | excellent thermal resistance, long service life, non-contaminating to the product, outstanding thermal shock resistance |
| Types of Raw Materials | sintered mullite, sintered corundum, fused corundum |
| Mineral Composition | mullite, corundum |
| Forming Method | Low-pressure injection moulding |
| Maximum Product Size | ca. 250 mm |
| Manufacturable Wall Thickness | approx. 2–15 mm |
| Manufacturable Weight Limits | less than 500 g |
Over the past 35 years, Thermokerámia Kft. has mastered and developed numerous forming processes to bring out the finest properties in each product. Our primary goal is the comprehensive service of our customers and the highest product quality, with cost and energy efficiency always in mind.
The following technologies are employed in our facility:
-Low-pressure injection moulding -Manual and low-pressure casting -High-pressure casting -Dry pressing -Plastic pressing -Extrusion
Based on the raw materials and technology selected for each product, we apply different firing profiles, temperature curves, and industrial kilns and sintering equipment. We take pride in our machinery and in our ability to manufacture products using modern, state-of-the-art kilns to meet ever-higher quality expectations. Our company has always prioritised innovation in this field. Equally important is keeping environmental and energy impact to a minimum.
Where required, following pre-firing and deparaffinisation procedures, we most commonly sinter our products to completion at 1,550°C alongside our cordierite firing profiles. Our maximum firing temperature is 1,700°C.
Coming soon.
